Two Components – One Watermaker

The system is made up of a pressure supply unit (PSU) and a reverse osmosis unit (RO).

Both parts are required to make a complete watermaker. The PSU lifts the seawater, filters out the sediment and puts the system under high pressure, while the RO unit extracts fresh water from the stream of pressurised seawater.

Most of the water goes out to waste as brine output, while about 20% of the volume is extracted as fresh potable water for your tanks.

Different RO options exist for you to select with your AC Rainman system, each to achieve their own specific objective.

With recent advancements in generators, batteries, and solar power generation, you have several options for powering the AC system.

Originally designed to run off of a minimum of a Honda 2kW generator, it will be easily powered by your inbuilt generator or a quality 2kVA inverter.

Choose either a 230VAC/50Hz or 115VAC/60Hz option to suit the power available in your situation.

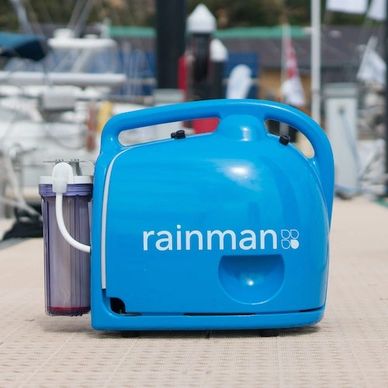

The traditional system in the blue case can be used as either portable or installed. If you wish to install it, it becomes a two box installation. Various approaches that can be utilised include:

• Keep it portable, pulling it out and setting it up each time you wish to use it.
• Leave the unit in a locker, but pull out the hoses and throw overboard to make water, avoiding the need to move the system around on your deck.
• Keep the system portable, but use a cam-lock fitting to temporarily plumb the system into a teed deck wash fitting. This gives the benefits of an installed system while using your portable unit while underway.
• Fully plumb the system in, including the autoflush system.

You have three basic reverse osmosis (RO) options, depending on your water requirements, space available, and budget.

All three RO options are compatible with the AC PSU and available in either the cased and naked configurations.

The system can be purchased either as the traditional blue case version or in the Naked configuration. The pricing, performance and power consumption are identical between the two options, so your specific requirements control which is best suited for your application.

The optional control panel provides a remote management capability for your installed Rainman watermaker. It’s a highly presentable and functional add-on component that will enhance your Rainman user experience.

It is an injection moulded ASA acrylic panel that remains true to Rainman’s reputation of elegant simplicity.

• Integration with the Rainman autoflush system, triggers flush cycle after powering the watermaker off.
• Built in tri-colour LED salinity sensor indicates when water is good to route to your tank.
• Can be installed flush mounted, standalone with the included enclosure box, or even externally with the optional hatch.
• Simple installation with no high pressure fittings or high voltage wiring.
• Backwards compatible if you already have an installed electric naked or cased Rainman.

Your Rainman watermaker is a very robust piece of equipment, but caring for certain aspects will prolong its life. Regularly flushing your Rainman with fresh water will maximise the life of your watermaker membranes.

The optional autoflush system incorporates a solid state programmable timer that will flush your Rainman watermaker after each use and every seven days thereafter. It incorporates built in protection if your boat loses power during or between flush cycles.

While the base system will be sufficient for many customers, a number of options are available to get more out of your Rainman watermaker.

• The plumbing installation kit is included with the Naked Rainman systems, but can also be a very useful option if you plan to install your Cased Rainman units.
• A hydrotester will give you indication of the total dissolved solids (TDS) so you can know how your membranes are ageing.

Two Components – One Watermaker

The system is made up of a pressure supply unit (PSU) and a reverse osmosis unit (RO). Both parts are required to make a complete watermaker. The PSU lifts the seawater, filters out the sediment and puts the system under high pressure, while the RO unit extracts fresh water from the stream of pressurised seawater. Most of the water goes out to waste as brine output, while about 20% of the volume is extracted as fresh potable water for your tanks. Different RO options exist for you to select with your AC Rainman system, each to achieve their own specific objective.

The heart of this system is the Honda GXH50 2.1HP engine, which is the same as that used in their 1kVA generator. It incorporates a tensioned belt drive system where the engine drives both an impeller lift pump and the General Pump high pressure pump. The fuel tank holds 700ml (1.5 pt) and will run for about 70 minutes, depending on fuel quality.

Petrol (gasoline)  exists on most boats already, so there is good reason why you may consider using it to power your watermaker. Some of the key benefits of using a separate motor for your watermaker include:

• Simplicity – For a portable configuration, there are only two boxes to set up and no need for external electricity.
• Redundancy – If your generator / inverter fails, you can still make water.
• Efficiency – There are no conversion losses between mechanical and electrical energy. Depending on water temperature, and source water salinity, you would expect a fuel to fresh water production ratio of about 150:1.
• Security – If you are in an urban survival situation after a natural disaster, a portable generator has very broad utility and greater chance of being stolen, rendering an AC system useless.

You have three options available for the reverse osmosis (RO) unit, depending on your water requirements, space available, and budget. All three RO options are compatible with the petrol (gasoline) PSU and available in the protective cases. The fuel consumption and sound levels for the PSU are the same regardless of which RO unit is attached, so most customers will choose the High Output RO unit to get the most water made as quick as possible.

Since the petrol (gasoline) system must be run in a well ventilated area and should not be installed in your vessel, some of the options are not available with this system. One item that can be considered is a hydrotester to give you indication of the total dissolved solids (TDS), so you can know how your membranes are ageing.

Two Components – One Watermaker

The system is made up of a pressure supply unit (PSU) and a reverse osmosis unit (RO). Both parts are required to make a complete watermaker.

The PSU lifts the seawater, filters out the sediment and puts the system under high pressure, while the RO unit extracts fresh water from the stream of pressurised seawater. Most of the water goes out to waste as brine output, while about 20% of the volume is extracted as fresh potable water for your tanks.

Unlike the AC (electric) or petrol (gasoline) powered Rainman Watermaker, the 12VDC is compatible only with the single 40″ RO membrane.

With recent advancements batteries, solar, and wind power, it is easier than ever to have sufficient useable amp-hours available for running your appliances.

Our 12VDC system requires 410 watts, or about 30 amps, to operate.

Our traditional system in the blue case can be used as either portable or installed. If you wish to install it, it becomes a two box installation. Various approaches that can be utilised include:

• Keep it portable, pulling it out and setting it up each time you wish to use it.
• Leave the unit in a locker, but pull out the hoses and throw overboard to make water, avoiding the need to move the system around on your deck.
• Keep the system portable, but use a cam-lock fitting to temporarily plumb the system into a teed deck wash fitting. This gives the benefits of an installed system while using your portable unit while underway.
• Fully plumb the system in, including the autoflush system.

It is worth noting that due to the lower output and shorter power cord of our 12VDC, most customers with this system will choose to fully install the watermaker.

Due to the lower flow rate of the 12VDC PSU, only the single 40″ membrane configuration of the Economy RO unit is supported. This can either be in the traditional blue case or Naked in the easy mounting bracket.

This system will make 26-34 litres per hour (7-9gph).

The system can be purchased either as the traditional blue case version or in the Naked configuration. The pricing, performance and power consumption are identical between the two options, so your specific requirements control which is best suited for your application.

The optional control panel provides a remote management capability for your installed Rainman watermaker. It’s a highly presentable and functional add-on component that will enhance your Rainman user experience.

It is an injection moulded ASA acrylic panel that remains true to Rainman’s reputation of elegant simplicity.

• Integration with the Rainman autoflush system, triggers flush cycle after powering the watermaker off.
• Built in tri-colour LED salinity sensor indicates when water is good to route to your tank.
• Can be installed flush mounted, standalone with the included enclosure box, or even externally with the optional hatch.
• Simple installation with no high pressure fittings or high voltage wiring.
• Backwards compatible if you already have an installed electric naked or cased Rainman.

Your Rainman watermaker is a very robust piece of equipment, but caring for certain aspects will prolong its life. Regularly flushing your Rainman with fresh water will maximise the life of your watermaker membranes.

The optional autoflush system incorporates a solid state programmable timer that will flush your Rainman watermaker after each use and every seven days thereafter. It incorporates built in protection if your boat loses power during or between flush cycles.

While the base system will be sufficient for many customers, a number of options are available to get more out of your Rainman watermaker.

• The plumbing installation kit is included with the Naked Rainman systems, but can also be a very useful option if you plan to install your Cased Rainman units.
• A hydrotester will give you indication of the total dissolved solids (TDS) so you can know how your membranes are ageing.
